25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw

  • 1 - 4 Sets
    $35,000.00
  • 5 - 9 Sets
    $30,000.00
  • >=10 Sets
    $27,000.00
Model Number:
F3015/4020/6020/6025
Power:
4000 3000 2000 1500 1000
Lead Time:
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Graphic customization (Min. Order: 1 Sets)

More

Customized packaging (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Application:
LASER CUTTING
Applicable Material:
metal
Condition:
New
Laser Type:
Fiber Laser
Cutting Area:
1500mm*3000mm 4000*2000 6000*2000 6000*2500
Cutting Speed:
140m/min
Graphic Format Supported:
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
Cutting Thickness:
0-30mm
CNC or Not:
yes
Cooling Mode:
WATER COOLING
Control Software:
Cypcut
Place of Origin:
China Jinan
Brand Name:
Tianchen Laser
Certification:
ce, ISO, GS, FDA
Laser Source Brand:
IPG MAX RAYCUS
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN 35 30 25
Control System Brand:
Cypcut
Weight (KG):
80000 KG
Key Selling Points:
High-accuracy
Optical Lens Brand:
Wavelength
Warranty:
3 years
After-sales Service Provided:
Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Construction works , Energy & Mining, Advertising Company
Local Service Location:
Egypt, Italy, Viet Nam, Brazil, Indonesia, Mexico, Russia, South Korea
Showroom Location:
Egypt, Italy, Germany, Viet Nam, Brazil, Indonesia, Russia, South Korea
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
3 years
Core Components:
Motor, Gearbox
Product name:
fiber laser cutting machine metal sheet
Cutting materials:
Stainless Steel Carbon Steel Aluminum brass Etc
Working area:
1500mmX3000mm / 2000mmX4000mm / 2000mmmX6000mm/2500mmX6000mm
Max cutting speed:
140m/min
Positioning Accuracy:
0.03mm
Repeated Positioning Accuracy:
0.02mm
Acceleration speed:
1.4G
Laser source:
MAX IPG RAYCUS
Keyword:
Low price and high profile
Dust removal system:
Intelligent partition dust removal system
Product Certification certification
CE Certified.
Valid from 2019-06-24 until 2024-06-25
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Plywood package
High accuracy Jinan 1000w cnc carbon steel stainless steel fiber laser metal cutting machine
Port
Qingdao, Ningbo, Tianjin, GUangdong
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 1 2 - 5 6 - 10 >10
Est. Time(days) 10 15 20 To be negotiated
Video Description

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw

Product Description

1.Applicable Fields
Applicable for high-speed cutting on various metal plates or tubes such as S/S, carbon steel, galvanized sheet,electrolytic plate, aluminum plate, steel, brass, alloy plate, rare metals and other materials,laser metal cutting machine price;

2.Widely used
Widely used in kitchen appliance, electric control box, high-resolute device, mechanical equipment, electrical equipment, lighting, posters, auto parts, display equipment, hardware and metal process.

3. Technical Parametrs of 25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



Model F3015/ F4020/F6020/F6025
Laser  source Brand    IPG/ Raycus/ Maxphotonics
Max.Moving Speed   140m/min
Power  1000W-4000W
Max. Acceleration 1.4G
Position Accuracy 0.03m/min
Re-Position Accuracy 0.02m/min
Exchange Time 10seconds
Laser Source IPG/ Maxpohtonics/ Raycus
Laser Head Raytoos
Cooling Mode Water Chiller
Motor Power Japan Servo Motor
Reducer Japan Shimpo
Electronic Components France Schneider
Pneumatic Components SMC
Square Rail Taiwan HINWIN
Lubrication system Guide rail automatic lubrication system





Product Advantages

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw
1.Heavy Duty plate welding machine bed with Vribration aging, Roughing, Heat treatment and so on;


2.Switzerland RAYTOOLS laser head, Japan YASKAWA servo motor, Japan SHIMPO reducer;
3. Taiwan HIWIN square rail, YYC rack;

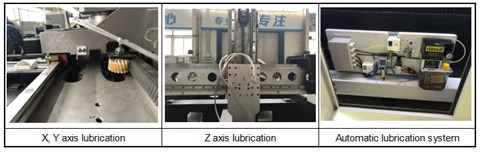

4.Upgrade the automatic lubrication system, add gear and lead screw lubrication components on the basis of guide rail lubrication, provide lubricating oil at fixed time and quantity, ensure the normal operation of the equipment, and extend the service life of the equipment;

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw

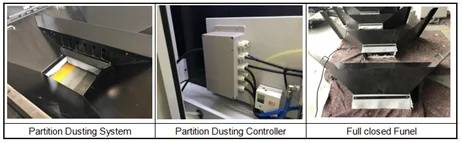

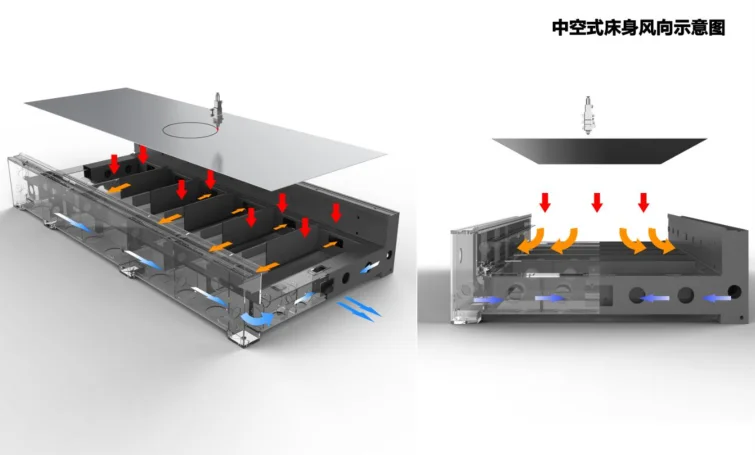

5. Partition dust removal function makes the design of dust removal protection more strict and reasonable;

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw


25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw

6. Excellent path quality: Smaller laser dot and high work efficiency, high quality;
7. High cutting speed 140m/min: cutting speed is 2-3 times than same power CO2 laser cutting machine;
8.Stable running: adopt top world import fiber lasers, stable performance, key parts can reach 100,000 hours;
9.High efficiency for photoelectric conversion: Compare with CO2 laser cutting machine, fiber laser cutting machine have three times photoelectric conversion efficiency;
10.Low cost: Save energy and protect environment. Photoelectric conversion rate is up to 25-30%. Low electric power consumption, it is only about 20%-30% of traditional CO2 laser cutting machine;
11. Low maintenance: fiber line transmission no need reflect lens, save maintenance cost;
12. Easy operations: fiber line transmission, no adjustment of optical path;
13. Adopt gantry double drive structure, import high precision reducer, gear rack and linear   guide rail, stable transmission, fast speed, high positioning accuracy.An intelligent monitoring system is added to track the cutting status in real time and reduce the accident rate.
14. Increase the follow-up system and automatic edge patrol system to improve the cutting effect and cutting efficiency;
15. The overall design is in line with ergonomics, with simple, atmospheric and practical appearance.

Samples

For Fier laser 2000W metal laser cuutting machine Laser >4000W fiber laser cutting machine, it can cut different materials,such as 30mm carbon steel, stainless steel, aluminum, copper, galvanized sheet and titanium alloy, suitable for construction machinery, environmental protection equipment, crafts

and other different industries.

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



Buyer Feedback

We approach all our clients on individual basis and we try to comprehend their business processes and their business philosophy in order to offer them services in line with their capacities. Through this process we seek to improve business processes in domain of our services in order to provide our clients with the service of maximum efficiency. By means of organising project teams in which our engineers actively cooperate with the responsible person from the client’s company we have proved our efficiency, which can also be

verified by numerous projects that have by now been successfully implemented.

We have received favorable comments from different countries customer feedback because of Tianchen Machine has good quality and attentive service.



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



Trade Shows

Tianchen laser has been in India,Russia,Indonesia,Malaysia,Korea and other more than 20 countries to participate in the Machine Tool Exhibition.We provide advanced laser cutting technology to the world, customers all over the world can get our after-sales service in all aspects.

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



Company Information

Jinan Tianchen Machine Group Co., Ltd Founded in 1995, is a world-renowned Chinese brand with strong capital, technical strength and good social reputation. The group has Tianchen Laser, Tianchen Aluminum Machine, Tianchen Intelligent Parking, Tianchen Testing Machine and many other subsidiaries. Tianchen Laser focuses on the R&D and manufacturing of laser processing equipment, integrating scientific research, production, sales, testing and service. With industry-level mechanical hardware designers, automation software senior engineers, technical testing engineers, marketing and after-sales service teams; with the industry's most powerful parts processing and manufacturing capabilities, has introduced dozens of large-scale processing equipment, CNC machining centers, High-precision machining and testing equipment such as laser collimator, laser interferometer and ball bar. And draw on the advantages of international similar equipment technology, continuous innovation, continuous research and development, adhere to the development model of independent innovation and quality manufacturing, the main products are laser cutting machine series, laser welding series, laser cleaning series and other related equipment.

25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw



Sertifications

We are proud of Tianchen certifications ,and Tianchen recognized  for quality and integrity. Best seller star product fiber laser cutting machine metal sheet 1000W 1500W 2000W

We have passed the international certifications such as CE certification, FDA certification, ISO9001 quality management system certification, Alibaba SGS enterprise certification and design patents.Strictly control all aspects of incoming materials, processing,

assembly, commissioning, testing, packaging and shipping to ensure the performance and quality of laser products.



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw









Contact us



25 years experience factory direct sale cnc fiber laser cutting machine 2kw 3kw 4kw

Thank you for choosing Tianchen Laser
